M2o general RF amp module

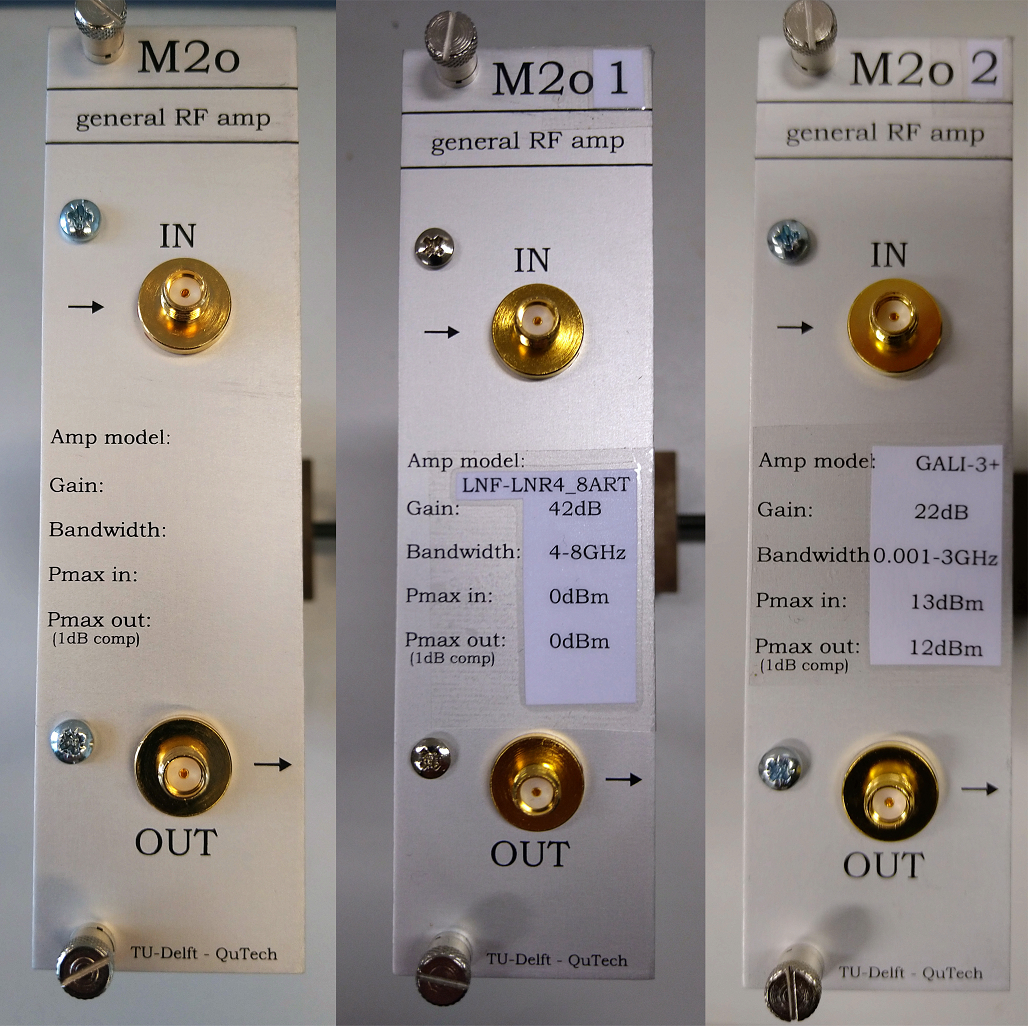

fig 1. Frontpanels

This module was developed to offer a standard platform wherein users can mount an RF amplifier. It looks nicer than having amplifiers laying around everywhere and you don't need seperate powersupplies for all of your amplifiers.

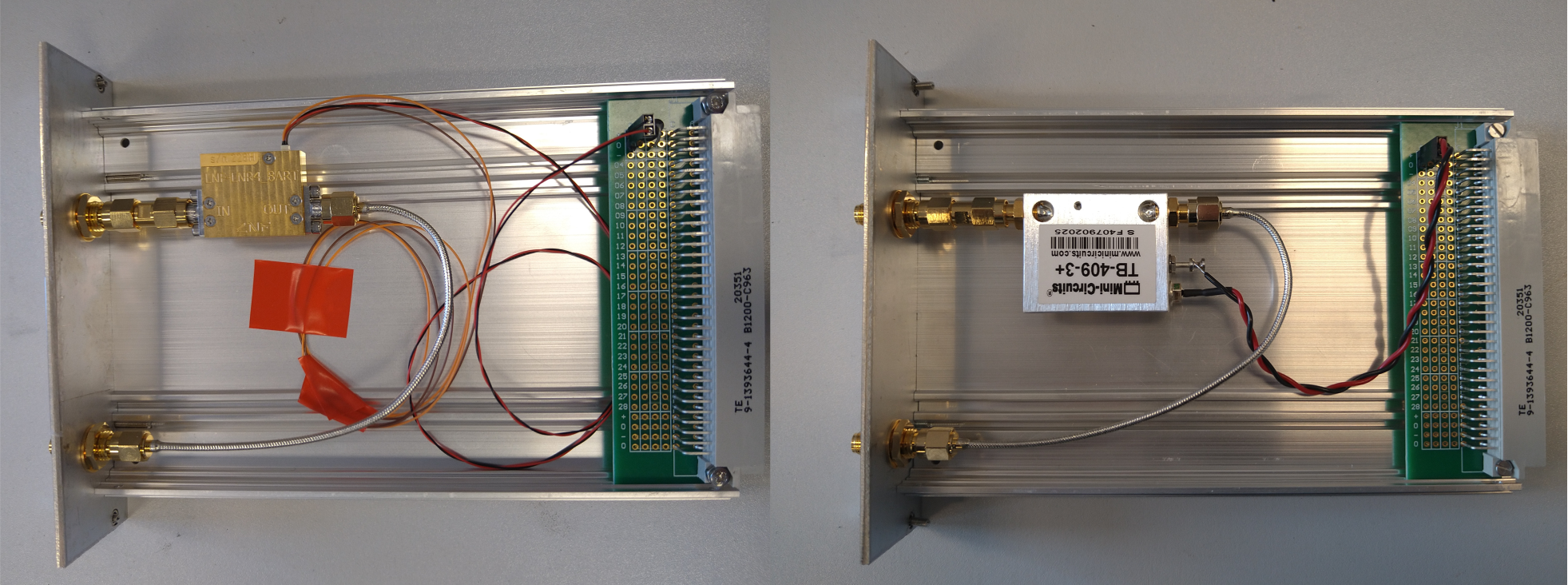

fig 2. Side view

How to use

• Power the SPI rack.
• If your amplifier uses a higher voltage make sure you are using the optional powerconnector on the SPI rack.
• Attach a 50ohm source and load.
• Be aware of the power limits of your particular amplifier module and don't exceed them.
