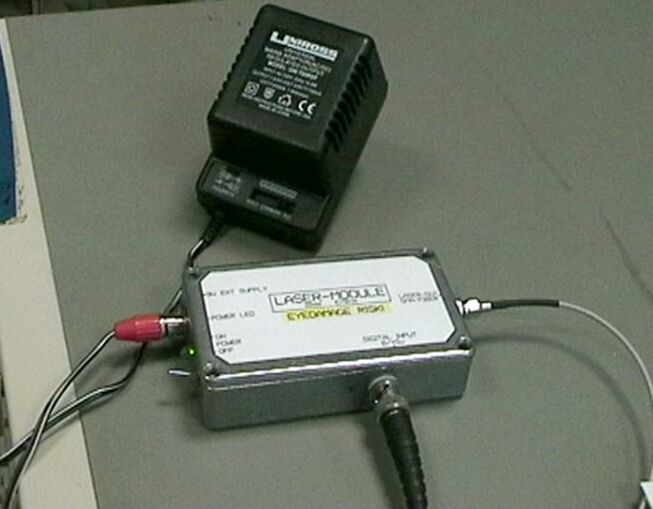

Laser 10mW 1nS
control : 0/+5V >1nS
Signal : 10mW
Wavelength: 670nm
Supply :adapter 9V
|

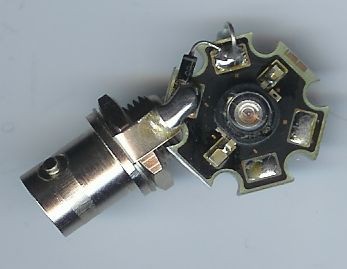

LED 1W BNC-in:
Rise/fall : ca 30nS
Signal : 0/5..10V
control : 50ohm source
Supply : from source
|
modulated laser: modified 5euro laserpointer
Rise/fall : ca 8nS
control : analog modulation dc-40MHz
Supply : 2xAAA
-
|

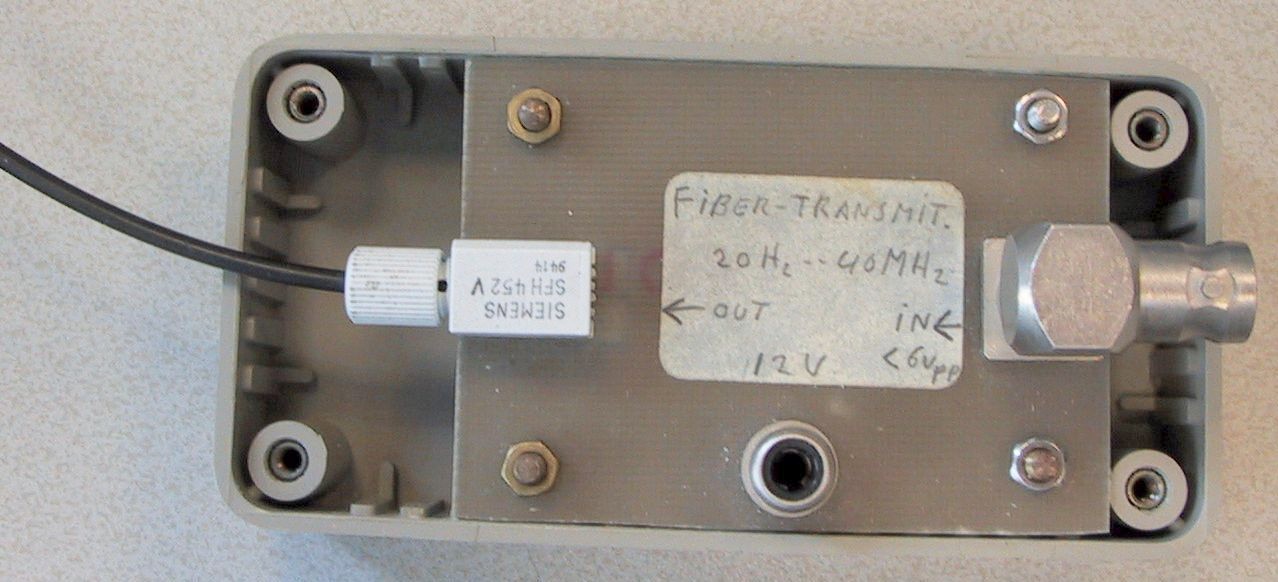

analog LED>fibre
control : analog<6Vpp
Signal : 20Hz..40MHz
Wavelength: 700nm
Supply :adapter 12V
|

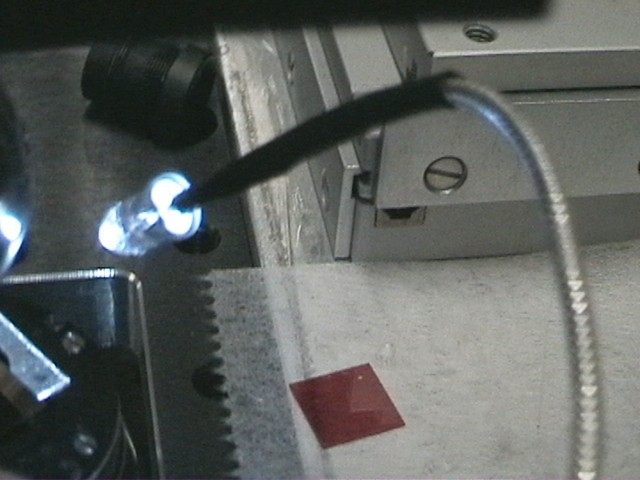

White LED:light/stroboscope
Rise/fall : ca 1uS
control : TTL in
Supply : adapter
-
|

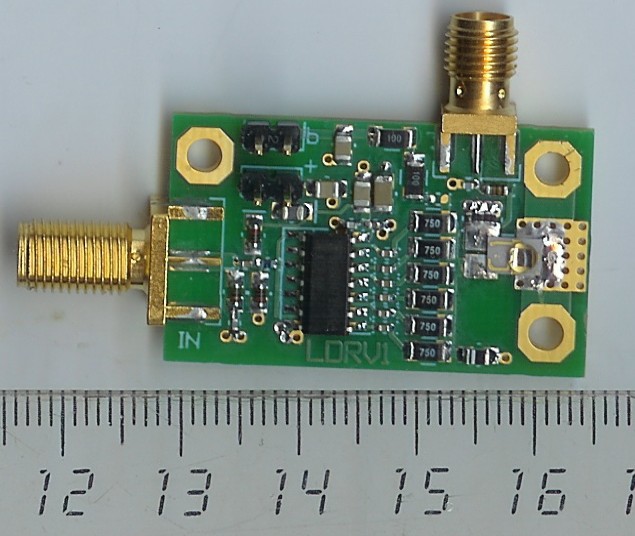

LED-driver:on/off up to 300MHz 100mA
Rise/fall : <1nS (set by LED)
control : sine in
Supply : 5V
-
|
