OP instrumentation -Pyro-electric detectors-

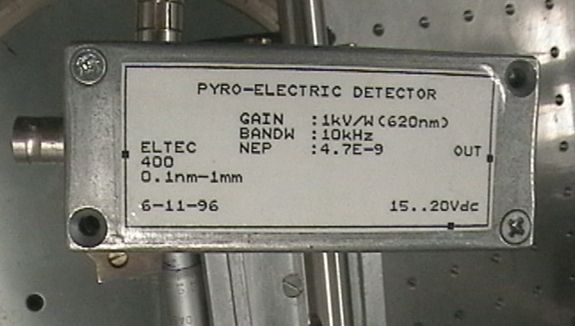

detector 1Hz-10kHz:

NEP       : 4.7E-9 W/sqrtHz
Signal    : 1k V/W
Wavelength: 0.1nm...1mm
det. size : 2mm (head=eltec400)
Supply    : adapter 15..20Vdc

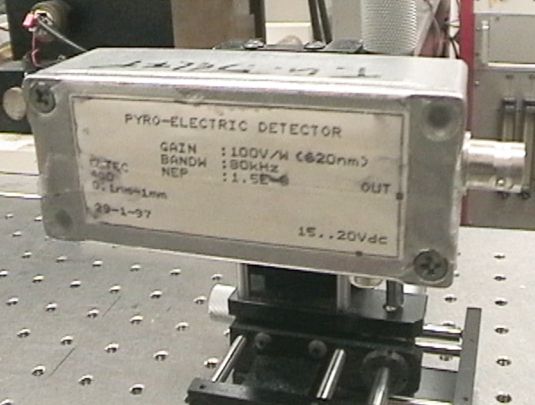

detector 1Hz-80kHz:

NEP       : 1.5E-8 W/sqrtHz
Signal    : 1k V/W
Wavelength: 0.1nm...1mm
det. size : 2mm (head=eltec400)
Supply    : adapter 15..20Vdc

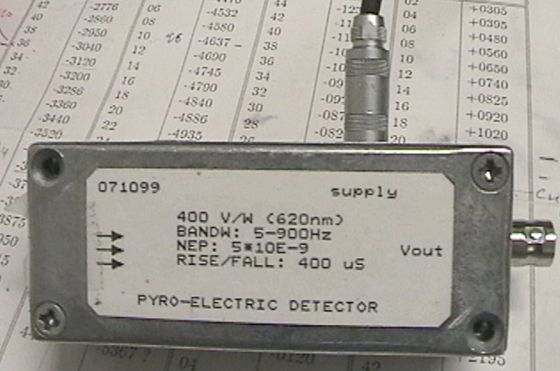

detector 5Hz-900Hz:

NEP       : 5E-9 W/sqrtHz
Signal    : 400 V/W
Wavelength: 0.1nm...1mm
det. size : 5mm (head=eltec420)
Supply    : +/-5V battery

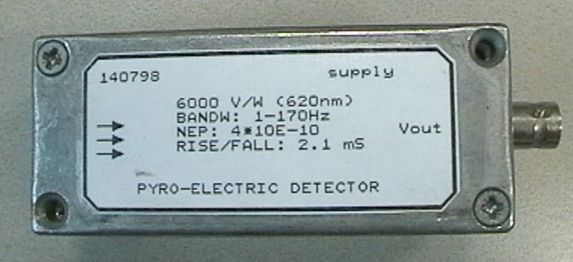

detector 1Hz-170Hz:

NEP       : 4E-10 W/sqrtHz
Signal    : 6k V/W
Wavelength: 0.1nm...1mm
det. size : 2mm (head=eltec400)
Supply    : +/-5V battery

detectorhead BNC:

NEP       : >1E-11 (@10Hz)
Signal    : 1uA/W
Wavelength: 0.1nm...1mm
det. size : 2mm (head=eltec400)
Supply    : none (passive)

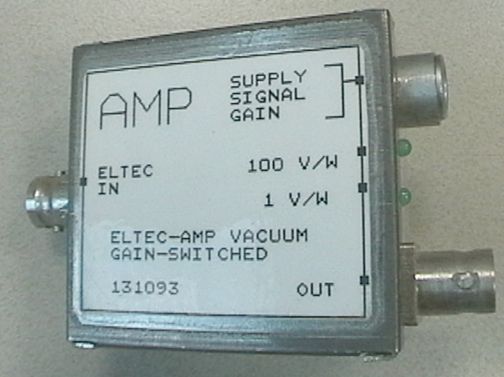

detector vacuum/2xgain:

NEP       : ?
Signal    : 10/ 0.01 V/W (remote)
Wavelength: BNC-HEAD
det. size : BNC-HEAD
Supply    : +/-5V battery

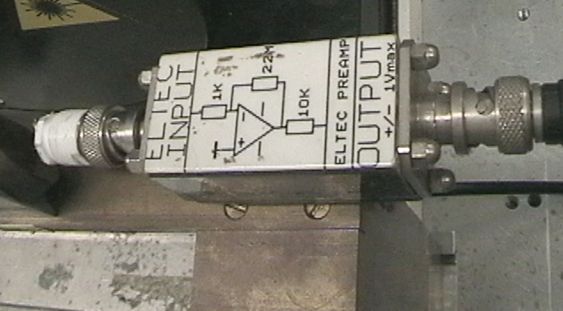

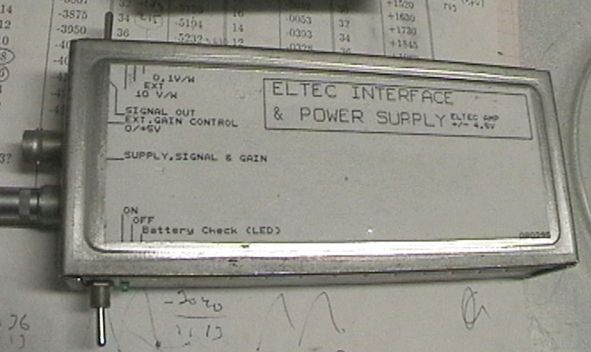

small detector(int.batt.) 5kHz:

NEP       : ?
Signal    : 22 V/W
Wavelength: 0.1nm...1mm
det. size : BNC-head
Supply    : +/-3V lith. inside

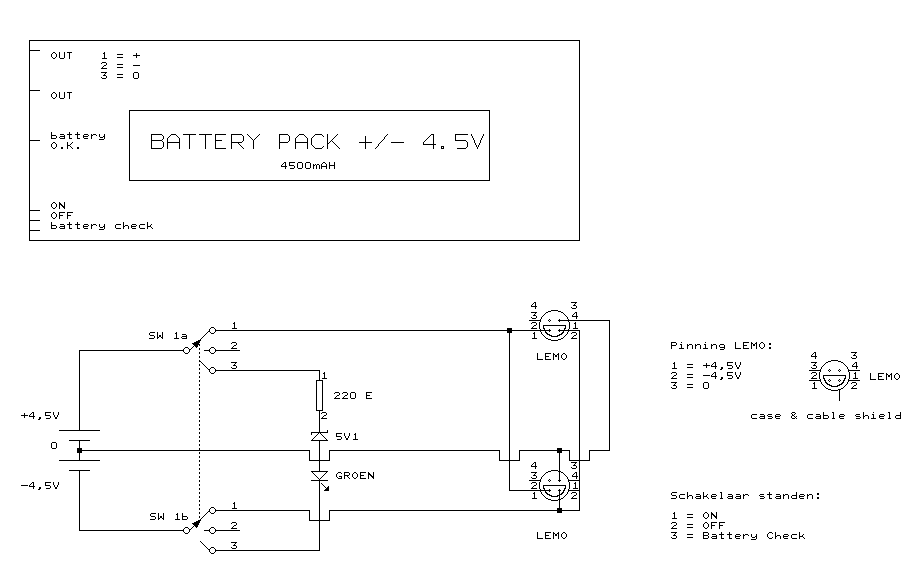

Supply batterypack:

Output   : +/-4V5
connector: lemo 00 series 4pin
capacity :4500 mAH

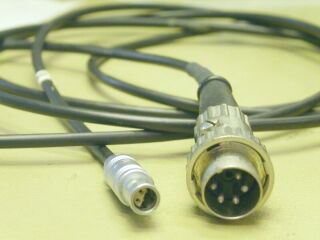

schematics cable

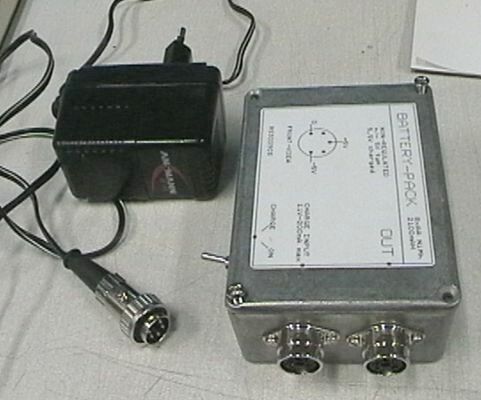

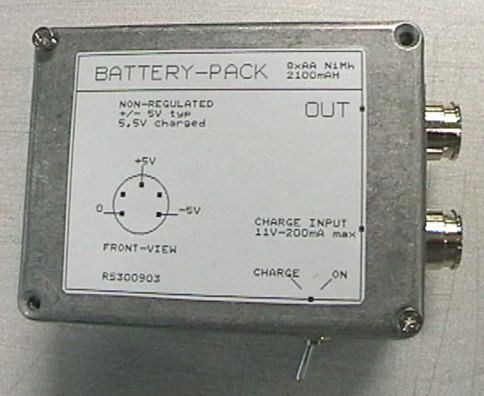

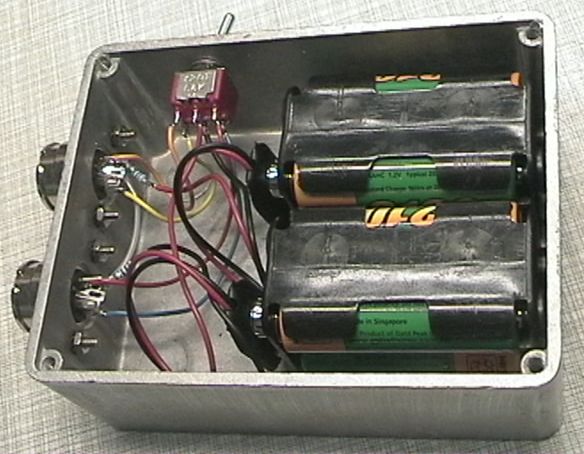

Supply 8xAA-NiMh+charger:

Output   : +/-5V
connector: DIN-locking
capacity :2100 mAH
