QT designed instrumentation -modules-S4b-

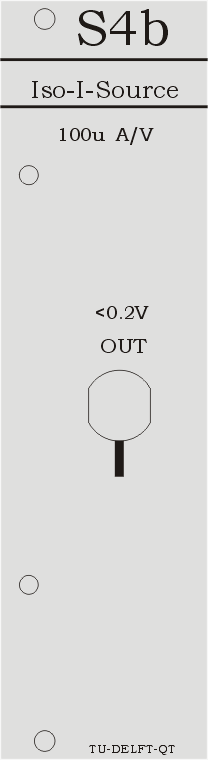

S4b, isolated Current Source

This module is designed as a very low noise bias source for IV measurements.
It's output is fully isolated (floating source) , energy is send via an optical path.

The maximum voltage swing of the current source should be <=200mV to prevent non-linearity.
