adapts lemo to: 1x BNC (shield=pin2, inner=pin4)
2x BNC (shield=shield, inner1=pin4, inner2=pin2)
4x ban. jack
2x MCX (shield=shield, inner1=pin4, inner2=pin2)
2x ground ban. jack
|
|

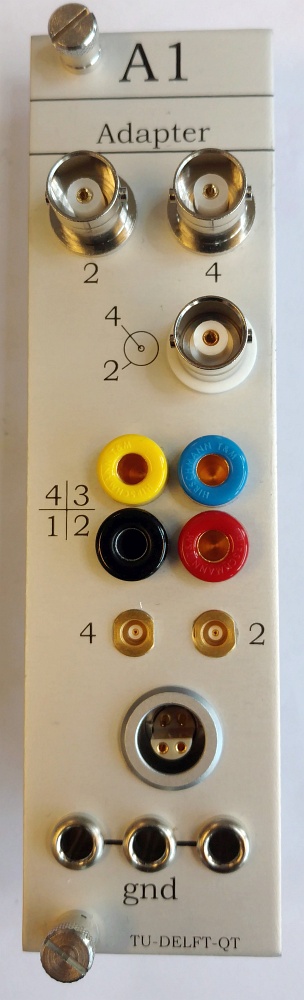

A1, Adapter module adapts lemo to: 1x BNC (shield=pin2, inner=pin4) 2x BNC (shield=shield, inner1=pin4, inner2=pin2) 4x ban. jack 2x MCX (shield=shield, inner1=pin4, inner2=pin2) 2x ground ban. jack |
