Filter Boards

Contact: 0152787983
Filter Board Sections
FFC50
FFC35
SMA
Pins/Header
SMD pad
MicroD
NanoD

FFC50

Connector: FFC50, name: Nico Box, nr: 17-024
size (LxWxT): 90 x 50 x ? mm
description: RC filter
17-024 more info

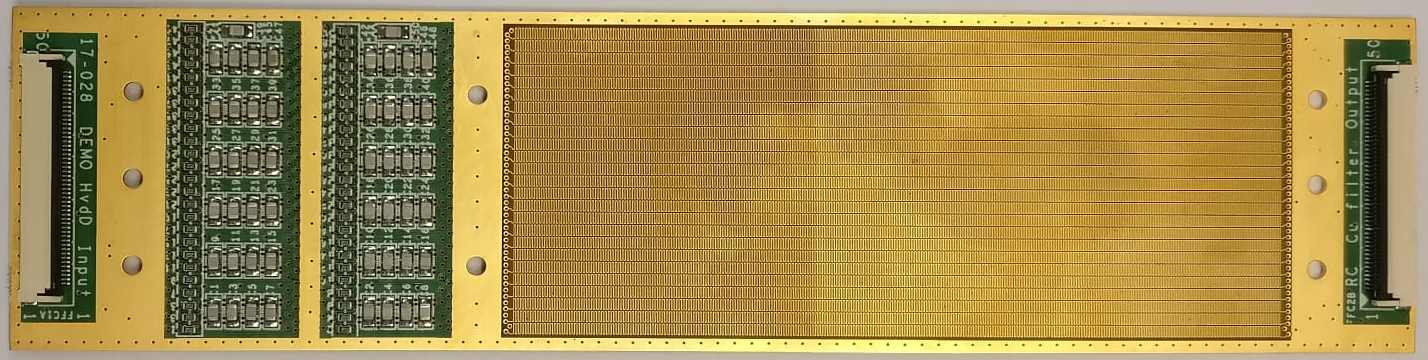

Connector: FFC50, name: Andrea Corna, nr: 17-028
size (LxWxT): 166 x 40 x ? mm
description: RC-Cu filter
17-028 more info
Connector:FFC50, name:Matt, nr:20-003
size (LxWxT):365 x 30 x 0.8 mm thickness = 0.8mm
description: Copper Powder Filterboard, Interface/filterBoard

more info
Connector:FFC50, name:Matt, nr:20-004
size (LxWxT):83x 40 x 3 mm
description: Pi-Filter Board,Interface/filter

more info
Connector:FFC50 to FFC50 , name:Olaf, nr:20-009
size (LxWxT) 1: 33 x 29.5 x 3 mm, 2: 24 x 29.5 x 3 mm, 3: 33 x 29.5 x 3 mm,
4: 41 x 29.5 x 3 mm, 5: 56 x 29.5 x 3 mm, 6: 56 x 29.5 x 3 mm
description: Interface/filter

more info
Connector:FFC50, name:Olaf, nr:20-022
size (LxWxT):106 x 30 x 3 mm
description: Filter board

more info
Connector:FFC50, name:Olaf, nr:21-007
size (LxWxT): 155.0 x 40.0 x 3.0 mm
description: Copper Powder Filterboard

more info
Connector:FFC50, name:Olaf, nr:21-013
size (LxWxT): 146 x 40 x ? mm
description: Filterboard (PI / Copper Powder)

more info
Connector:FFC50, name:Olaf, nr:21-015
size (LxWxT): 67 x 40 x ? mm
description: Filter Board Double RC

more info
Connector:FFC50/microD, name:Florian, nr:21-027
size (LxWxT): 144 x 96 x ? mm
description: 100 Channel Filter board

more info
Connector:FFC50-Pins, name:, nr:16-003
size (LxWxT):88 x 58 x ? mm
description:RC filter

more info
Connector:FFC50-FFC50, name:Roy Li, nr:16-017
size (LxWxT):128 x 34.8 x ? mm
description:CuP filter

more info
Connector:FFC50-uD25-SMA, name:, nr:16-021
size (LxWxT):114 x 92.4 x ? mm
description:RC filter LD400

more info(FFC1) more info(FFC2)
Connector:FFC50-uD25, name:, nr:16-024
size (LxWxT):114 x 92 x ? mm
description:RC filter LDHE

more info
Connector:FFC50-uD25-SMA, name:, nr:16-026
size (LxWxT):160.4 x 100 x ? mm
description:RC filter XLD

more info
Connector:FFC50-uD25, name:Will-Nico, nr:20-002
size (LxWxT):160.4 x 100 x ? mm
description:Interface/filter, LD400, 2 boards stacked per system

more info
Connector:FFC50-uD25, name:Will-Nico, nr:22-026
size (LxWxT):160.4 x 100 x ? mm
description:LD400 Filterboard improved

more info

FFC35

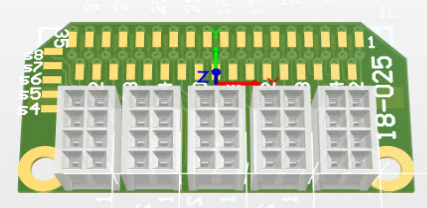

Connector: FFC35-4x2Header, name: , nr: 18-025
description: Combiner PCB Fristi
18-025 more info

SMA

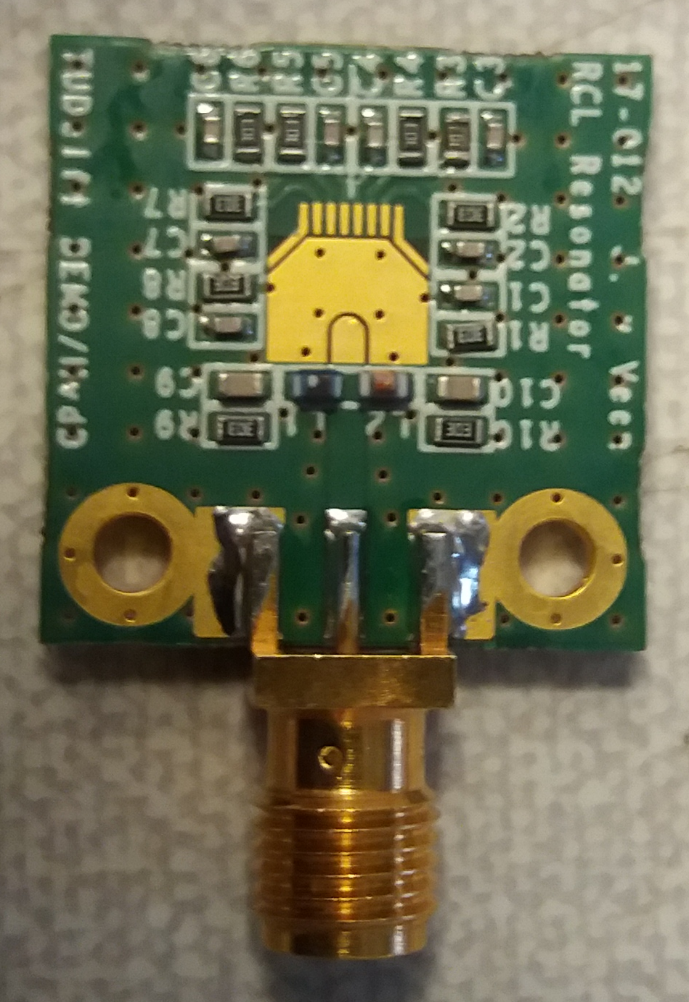

Connector: SMA, name: , nr: 17-012
description: RCL resonator PCB
17-012 more info
Connector:FFC50-uD25-SMA, name:, nr:16-021
size (LxWxT):114 x 92.4 x ? mm
description:RC filter LD400

more info(FFC1) more info(FFC2)
Connector:FFC50-uD25-SMA, name:, nr:16-026
size (LxWxT):160.4 x 100 x ? mm
description:RC filter XLD

more info
Connector:SMA-SMA, name:, nr:
size (LxWxT):
description:pcb switchjunction+CuPowderfilters


more info N/A
Connector:SMA-SMA, name:, nr:
size (LxWxT):? x ? x 0.8 mm
description:cryogenic Bias-Tee 5Hz-2.5GHz (gate)

more info
Connector:SMA-SMA, name:, nr:
size (LxWxT):? x ? x 0.8 mm
description:cryogenic Bias-Tee

more info N/A
Connector:SMA-SMA, name:, nr:
size (LxWxT):? x ? x 0.8 mm
description:cryogenic Bias-Tee risetime 46pS

more info
Connector:SMA, name:, nr:15-001
size (LxWxT):
description:Carrier board for minicircuits rf filter board, LFCN Filter pcb

more info N/A

Pins/Header

Connector:Header, name:, nr:18-003
size (LxWxT):
description:RF Bandpass Filter board

more info
Connector:Header 4x2, name:Jason, nr:18-023
size (LxWxT):95 x 11 x ? mm
description:Filter PCB Fristi

more info
Connector:FFC35-4x2Header, name:, nr:18-025
size (LxWxT):
description:Combiner PCB Fristi

more info
Connector:FFC50-Pins, name:, nr:16-003
size (LxWxT):88 x 58 x ? mm
description:RC filter

more info
Connector:Header, name:, nr:16-005
size (LxWxT):114 x 7.7 x ? mm
description:Copper powder stick, Filter









more info
Connector:Pins 1x8, name:, nr:
size (LxWxT):? x ? x 1.6 mm
description:cryogenic RC+RC filter for sample wires

measured filtercurve in 1Mohm load
pcboard topview
pcboard bottomview
rc-values example1
rc-values example2
Connector:Pins, name:, nr:
size (LxWxT):?
description:cryogenic RC+RC filter for sample wires (rc400ha)

more info N/A
Connector:Pins, name:, nr:
size (LxWxT):?
description:cryogenic RC+RC filter for sample wires (rc12han2)

more info N/A
Connector:Pins, name:, nr:
size (LxWxT):?
description:cryogenic RC+RC filter for sample wires (rcsergey1)

more info N/A
Connector:Pins, name:, nr:
size (LxWxT):?
description:cryogenic RC+RC filter for sample wires

more info N/A
Connector:?, name:, nr:18-002
size (LxWxT):
description:Narrow-band Band-stop Filter board

more info

SMD pad

Connector:SMD pad, name:, nr:18-013
size (LxWxT):166.6 x 16 x 1.6 mm
description:Copper Powder Stick

more info

MicroD

Connector:FFC50/microD, name:Florian, nr:21-027
size (LxWxT): 144 x 96 x ? mm
description: 100 Channel Filter board

more info
Connector:MicroD, name:, nr:18-012
size (LxWxT):
description:100CH CuP Filter board

more info
Connector:NanoD/microD, name:, nr:16-016
size (LxWxT):138 x 74 x ? mm
description:CuP filter LFCN RC PCB Cassidy

more info
Connector:FFC50-uD25-SMA, name:, nr:16-021
size (LxWxT):114 x 92.4 x ? mm
description:RC filter LD400

more info(FFC1) more info(FFC2)
Connector:FFC50-uD25, name:, nr:16-024
size (LxWxT):114 x 92 x ? mm
description:RC filter LDHE

more info
Connector:FFC50-uD25-SMA, name:, nr:16-026
size (LxWxT):160.4 x 100 x ? mm
description:RC filter XLD

more info
Connector:FFC50-uD25, name:Will-Nico, nr:20-002
size (LxWxT):144 x 96 x ? mm
description:Interface/filter, LD400, 2 boards stacked per system

more info

NanoD

Connector:NanoD/microD, name:, nr:16-016
size (LxWxT):138 x 74 x ? mm
description:CuP filter LFCN RC PCB Cassidy

more info
