typical rc-filter values-1
typical rc-filter values-2
rc-filter b059 ohmics
rc-filter b059 gates
measurements dc-500MHz (1 Mohm load)

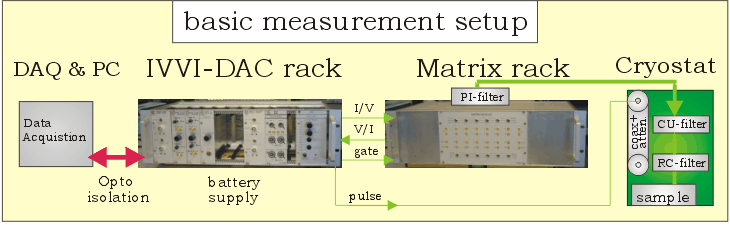

| Setup showing isolation, supply and filtering elements to lower interference: | ||
|
||
| PI-filters (roomtemp. filters from 10MHz to 10GHz) | ||
| C=1n5 |
specified damping (db, 50ohm load) |
|
| Cu-Powder filters:
(cryo-filters from 100MHz to >>40GHz) |
||
| Type:Cu-wire | meas:0.03-0.5GHz | |
| Type:Cu-wire | meas:0.03-2GHz | |
| Type:Cu-wire | meas:0.03-6GHz | |
| Type:Manganine-wire | meas:0.03-2GHz 1.5-3-5meter wire | |

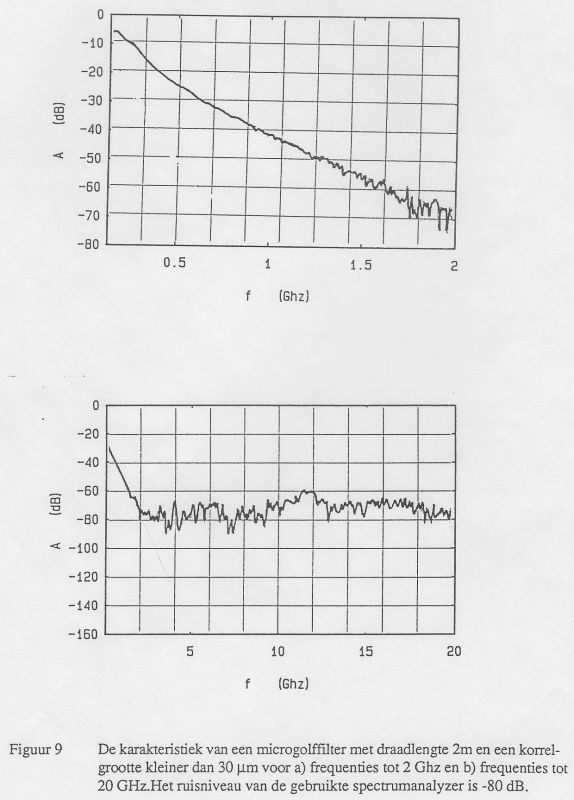

| Type:Manganine-wire | meas:0.1-20GHz | |
| Cupowder grainsize effects | filter as function of grainsize | |
| (sma-in/out) capacitance | filter capacitance versus wire length | |
| (sma-in/out) cutt-of freq | filter curve 0-6GHz versus wire length | |

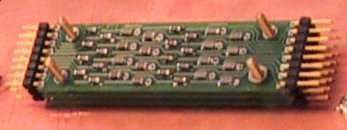

| RC-filters (cryo-filters from 10kHz to 500MHz) | ||
| circuit: typical rc-filter values-1 typical rc-filter values-2 rc-filter b059 ohmics rc-filter b059 gates |
damping: 10kHz=3dB 1MHz=50dB 100MHz=35dB 500Mhz=55dB measurements dc-500MHz (1 Mohm load) |
|
