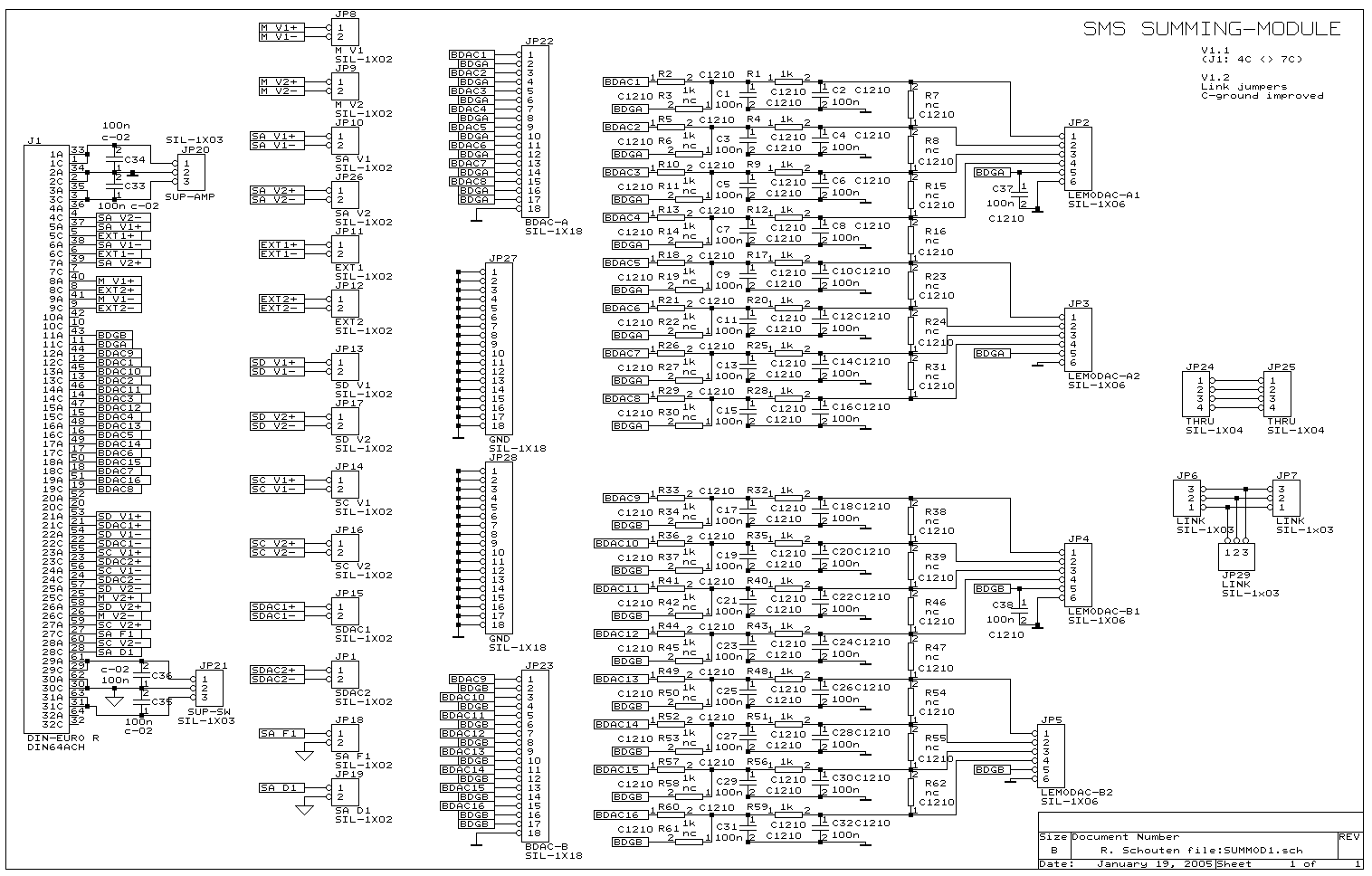

Summing module S2 This module contains no electronics but functions as a "patch area" for the user. All control inputs of the source/measure modules can be connected to signals from the iso-amp-in module or/and the D5-DAC module (via patchchords inside the module). All the (8/16) DACs have also an output on the front panel (note that the DACs themself are located in the D5-module). Other functions of S2 are: DAC-filtering/summing/dividing. Different front panels are possible to adress connector preferences. Standard frontpanel is S2d (or S2f with added resistors) IVVIDAC2: Drawing of the S2 internal patchboard (ver 1.2) and routing options circuit diagram (board ver 1.2) older versions IVVIDAC, IVVIDACm and SMS-system: Drawing of the S2 internal patchboard (ver 1.1) and routing options circuit diagram (board ver 1.1) Drawing of the S2 internal patchboard (ver 1.2) and routing options circuit diagram (board ver 1.2) picture of standard patchcord used inside S2 picture of special splitpatchcord used inside S2 |
|||

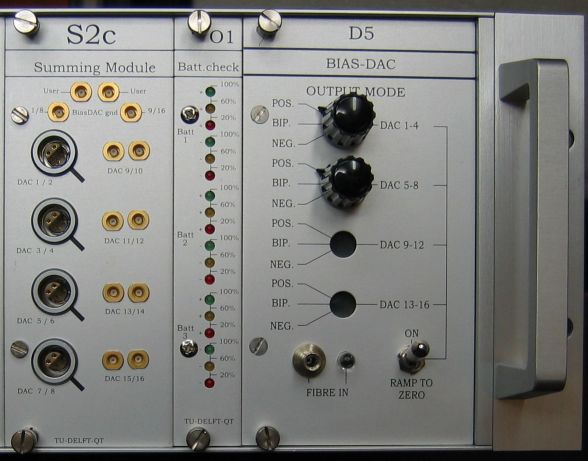

S2 in IVVIDACm-rack next to batt.check
and DAC-module![]() |

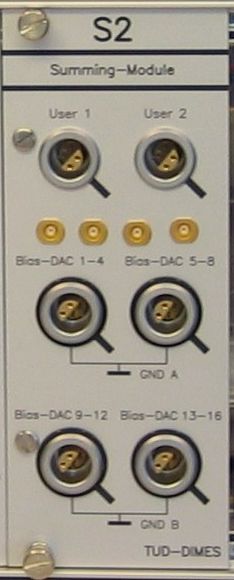

Original S2 front 4DACS/Lemo Lemo-shield=dac-zero ![]() |
||

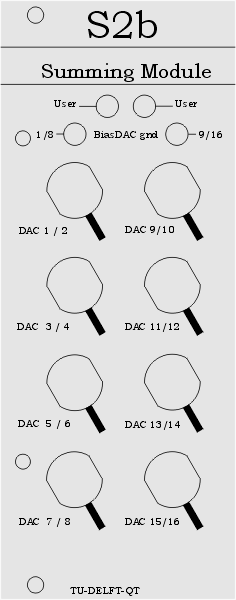

S2b front 2DACS/Lemo 2x MCX=DAC-zero ![]() |

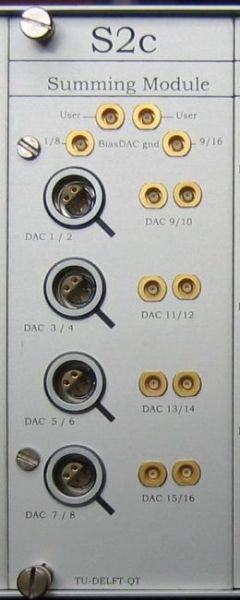

S2c front 4x 2DACS/Lemo, 8x 1DAC/MCX 2x MCX=dac-zero ![]() |

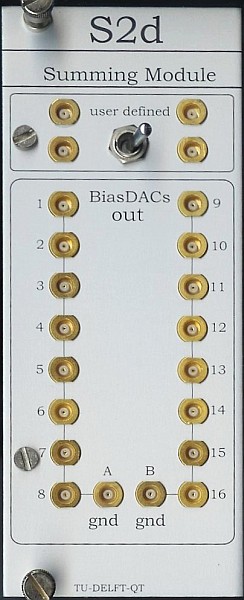

S2d front 16x 1MCX/DAC 2x MCX=DAC-zero, user-switch ![]() |
|

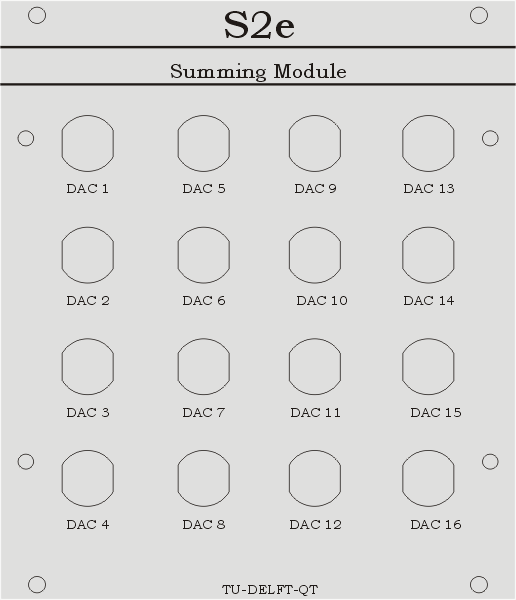

S2e front 1DAC/Lemo Does NOT fit in standard IVVI(DAC)rack, custom made for DAC-only rack ![]() |

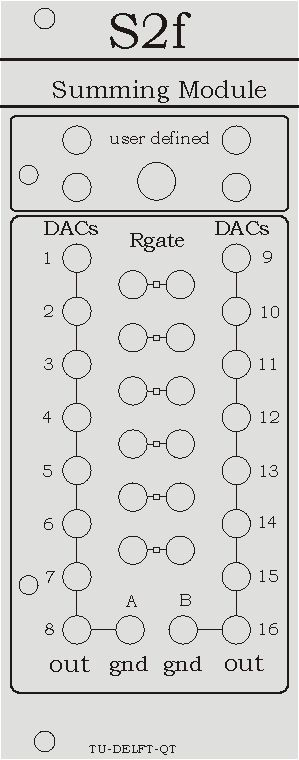

S2f front additional series resistors for gate ![]() |
