QT designed instrumentation -cryo amps-

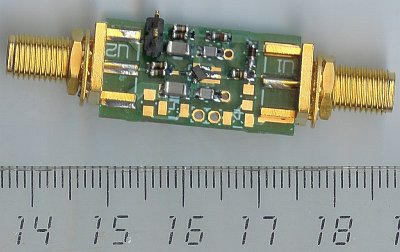

high impedance amp(10kohm) 5kHz-80MHz(total link)


pulse detection, signals

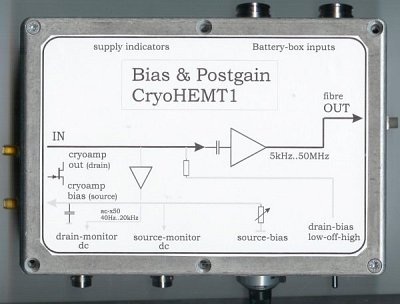

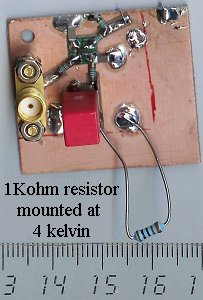

dc-1MHz current meter, prototype cryoamp and postamp
basic circuit implementation

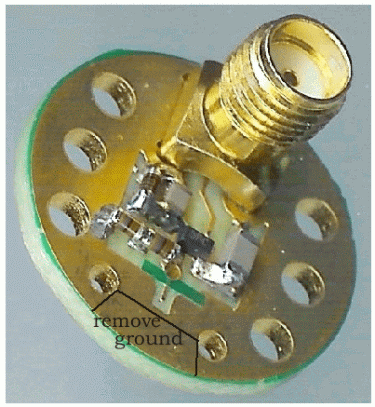

SSPD-readout, high impedance amp and bias, top view

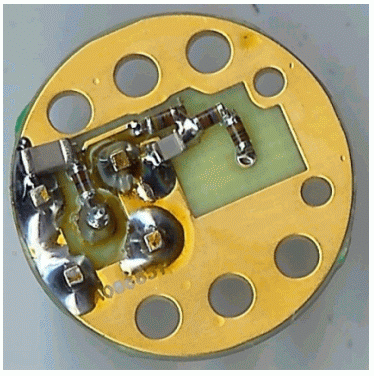

bottom view
